PROFESIONÁLNE AUDIO SYSTÉMY arrow Výkonové zosilňovače arrow RT 2006

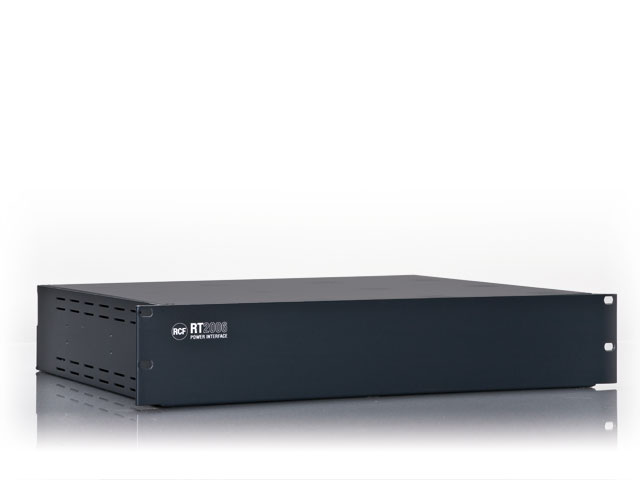

RT 2006

RT 2006
Krabica do 19" stojanu pre montáž 100V výkonových toroidných transformátorov TD 300, TD 500, TD 1000

Cena: 233,00 € bez DPH 0 SK bez DPH
279,60 € s DPH 0 SK s DPH

DATA Library       Stránka výrobcu       Katalogový list SK


Features
  • The RT 2006 is a 2 standard unit 19" high rack container to house and connect up to 6 TD 300 transformers, 4 model TD 500 transformers or 2 TD 1000 transformers
  • Different transformers can also be combined within the transformer panel
  • The RT 2006 has an interface circuit with connection terminals between amplifiers, transformers and speaker lines
  • The connections are all removable and sized for maximum applicable power
  • Easy transformer installation and connection to terminals
  • Thanks to material over-sizing and alternate layer windings, frequency response of the transformers is particularly extended. These transformers can be used also with professional high performance loudspeakers.
AMPLIFIER SPECIFICATIONS
  • Max Power applicable to each zone: 500 W ( 100 V)
  • Max Power applicable to each zone: 350 W ( 70 V)
  • Max Power applicable to each zone: 250 W ( 50 V)
  • Max Power applicable to each zone: 125 W ( 25 V)
INPUT SECTION
  • Inputs connectors: SPEAKON
OUTPUT SECTION
  • Output connectors: Screw treminal EUROBLOCK type
  • Remote Indicators: n.c. dry contact Transformer thermal detection
  • Output Loudspeaker Constant voltage: 100 V
PHISICAL SPECIFICATION
  • Height: 88 / 3.46 mm/inch
  • Width: 483 / 19.01 mm/inch
  • Depth: 383 / 15.07 mm/inch
  • Net Weight: Depend from the configuration Kg/Lbs
SHIPPING INFORMATION
  • Package height: 125 / 4.92 mm/inch
  • Package width: 530 / 20.86 mm/inch
  • Package depth: 460 / 18.1 mm/inch
  • Shipping Weight: Depend from the configuration Kg/Lbs
