HLASOVÁ SIGNALIZÁCIA POŽIARU HSP EN 54 arrow D-936R

D-936R

D-936R

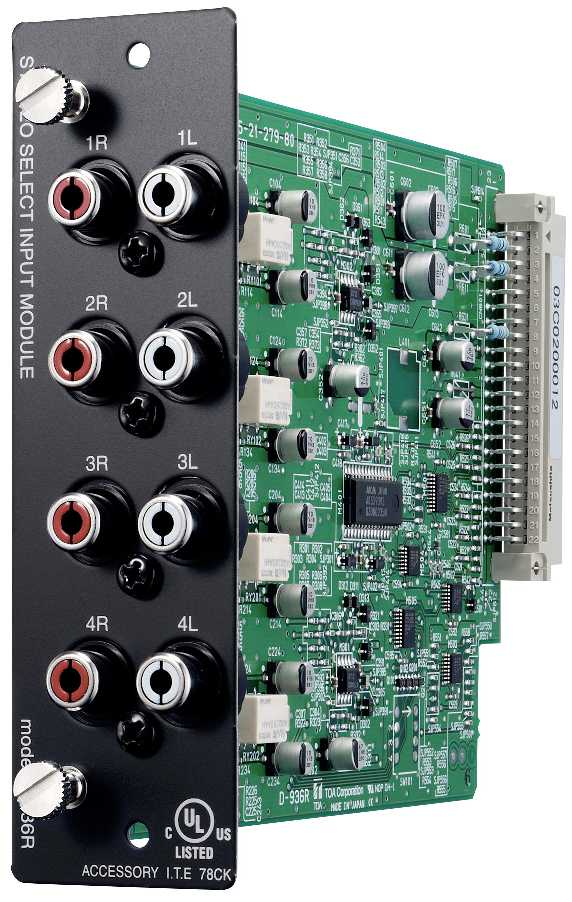

D-936R-4 stereo vstup modul , -10dB RCA elektronicky nesymetrický, . Pre: D-901,DP-K1,D-2008SP stereox 4 vstupy( výber 1 stereovsup alebo mix . Pre SX-2100AI : mono x2 . A/D prevodník 24bit,48kHz. Frekvenčý rozsah 20Hz-20kHz, ± 1dB, skreslenie 0.05%.4xR

Cena:  Zistiť cenu

DATA Library       \Stránka výrobcu       Katalogový list SK

Specification
* 0 dB = 0.775 V
Input 1) When the module is attached to the D-901 (option) or D-2008SP (option)
or DP-K1 (option); stereo × 4 inputs (Selection of 1 stereo or mixing or
all 4 stereo inputs) -10 dB*, 10 kΩ, RCA pin jack
2) When the module is attached to the SX-2100AI (option);
monaural × 2, -10 dB*, 10 kΩ, RCA pin jack
A/D Converter 24 bit
Sampling Frequency 48 kHz
Frequency Response 20 Hz - 20 kHz, ±1 dB (+4 dB* input)
Dynamic Range 100 dB (IHF-A weighted) or more
Total Harmonic Distortion 0.05 % or less
Finish Panel: Pre-coated steel plate, black, 30 % gloss
Dimensions 35 (W) × 119.5 (H) × 178.4 (D) mm
Weight 145 g
