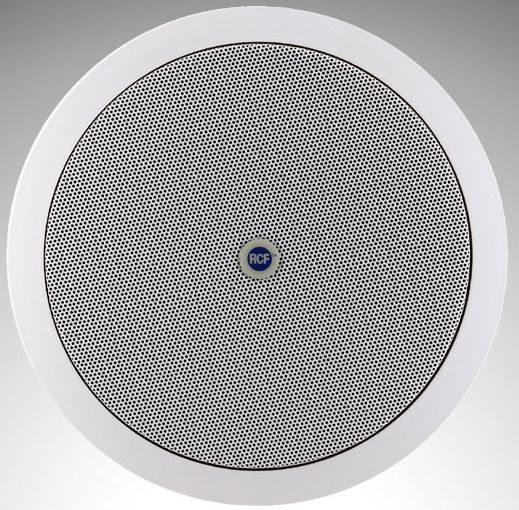

RCF PL 8X

RCF PL 8X
Stropný dvojpásmový koaxiálny reproduktor 8", 60 Hz - 20 kHz, rozmery Ø 247 x 88 mm, montáž pomocou troch skrutkovacích výsuvných príchytiek, hrúbka stropu 8 až 30 mm, 93 dB/1m/1W, plastový, kovová mriežka, biely, 20W/100V a 70V, odbočky 10W, 5W a 2,5W

Cena:  Zistiť cenu

Katalogový list SK

Features
  • Two way speaker system with dome tweeter recommended for hi level speech and background-music reproduction
  • Music power/RMS: 40/20W
  • 8" woofer with coaxial tweeter
  • Low impedance (8Ω) or 100V
  • Built-in multi-tapped transformer for 100/70V constant voltage connection
  • Body in self-extinguishing plastic (UL 94V-0) and front metal grille RAL 9003 White
  • IP 44 protection
Acoustical Specifications
  • Type of speaker: Ceiling
  • Frequency Response: 60 Hz ÷ 20 kHz
  • Max SPL @ 1m: 109 dB
  • Horizontal coverage angle: 80°
  • Vertical coverage angle: 80°
  • Power Handling: 20 W RMS
  • Peak Power Handling: 40 W PEAK
  • System Sensitivity: 93 dB
  • Impedance: 8 Ω
  • Protections: IP 44
Transducers
  • Speaker: 8"
  • Coaxial: 1"
Input Section
  • Input connector: 6 pin terminal block
  • Constant voltage: 100 V / 70 V
  • Power Selection: 20 - 10 - 5 - 2.5 W (100 V)
Cabinet
  • Hardware: Plastic material
  • Colour: White
  • Grille: Steel
Physical Specifications
  • Height: 88 / 3.46 mm/inch
  • Width: 247 / 9.72 mm/inch
  • Depth: 247 / 9.72 mm/inch
  • Net weight: 1.73 / 3.81 kg/lbs
Shipping information
  • Package height: 130 / 5.11 mm/inch
  • Package width: 280 / 11.02 mm/inch
  • Package depth: 280 / 11.02 mm/inch
  • Shipping weight: 2.08 / 4.58 kg/lbs
