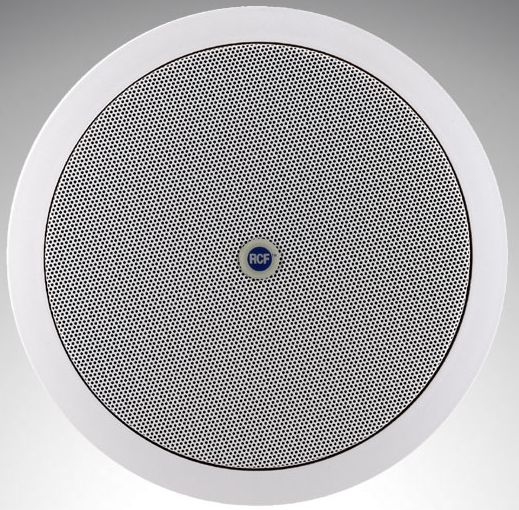

RCF PL 6X

RCF PL 6X
Stropný dvojpásmový reproduktor 6"(204x73mm-montážny otvor 182mm, hrúbka stropu 8 až 30mm), coax,92dB/1m/1W, plastový,kovová mriežka, biely, 12W,6W,3W,1.5W/ 70-100V, 1.2kg, IP44

Cena:  Zistiť cenu

Katalogový list SK


Features
  • Two way speaker system with dome tweeter recommended for speech and background-music reproduction
  • Music power/RMS: 24/12W
  • 6" woofer with coaxial tweeter 1"
  • Low impedance (8Ω) or 100V
  • Built-in multi-tapped transformer for 100/70V constant voltage connection
  • Three hooks mounting system (no screws or other attachment elements)
  • Body in self-extinguishing (UL 94V-0) plastic and front metal grille RAL 9003 White
  • IP 44 protection
Acoustical Specifications
  • Type of speaker: Ceiling
  • Frequency Response: 70 Hz ÷ 20 kHz
  • Max SPL @ 1m: 106 dB
  • Horizontal coverage angle: 100°
  • Vertical coverage angle: 100°
  • Power Handling: 12 W RMS
  • Peak Power Handling: 24 W PEAK
  • System Sensitivity: 92 dB
  • Impedance: 8 Ω
  • Protections: IP 44
Transducers
  • Speaker: 6"
  • Coaxial: 1"
Input Section
  • Input connector: 6 pin terminal block
  • Constant voltage: 100 V / 70 V
  • Power Selection: 12 - 6 - 3 W (100 V)
Cabinet
  • Hardware: Plastic material
  • Colour: White
  • Grille: Steel
Physical Specifications
  • Height: 73 / 2.87 mm/inch
  • Width: 204 / 8.03 mm/inch
  • Depth: 204 / 8.03 mm/inch
  • Net weight: 1.28 / 2.82 kg/lbs
Shipping information
  • Package height: 110 / 4.33 mm/inch
  • Package width: 240 / 9.44 mm/inch
  • Package depth: 240 / 9.44 mm/inch
  • Shipping weight: 1.56 / 3.43 kg/lbs
