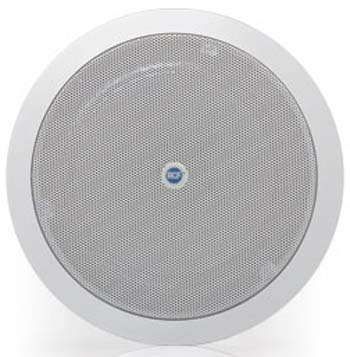

RCF PL 60

RCF PL 60
Stropný širokopásmový reproduktor 6"(204x75mm-montážny otvor 182mm, hrúbka stropu 8 až 30mm), dual-cone, plastový,kovová mriežka, biely, 6W/ 70-100V, 1.2kg, IP44

Cena:  Zistiť cenu

DATA Library       Stránka výrobcu       Katalogový list SK

Features
  • For paging and background music
  • Music power / RMS: 10 / 6 W
  • 6" dual cone wide band loudspeaker
  • Sound pressure level at music power: 102 dB/1 m
  • Low impedance (4Ω) or 100V
  • Built-in multi-tapped transformer for 100/70V constant voltage connection
  • Body in self-extinguishing plastic UL-94-V0
  • Front metal grille RAL 9010 White
Acoustical Specifications
  • Type of speaker: Ceiling
  • Frequency Response: 110 Hz ÷ 20 kHz
  • Max SPL @ 1m: 102 dB
  • Horizontal coverage angle: 150°
  • Vertical coverage angle: 150°
  • Power Handling: 6 W RMS
  • Peak Power Handling: 12 W PEAK
  • System Sensitivity: 91 dB
  • Impedance: 8 Ω
Transducers
  • Speaker: 6"
Input Section
  • Input connector: 5-pin terminal strip
  • Constant voltage: 100 V / 70 V
  • Power Selection: 6 - 3 W (110 V)
Cabinet
  • Hardware: Plastic material
  • Colour: White
  • Grille: Steel
Physical Specifications
  • Height: 75 / 2.95 mm/inch
  • Width: 204 / 8.03 mm/inch
  • Depth: 204 / 8.03 mm/inch
  • Net weight: 800 / 1.76 kg/lbs
Shipping information
  • Package height: 240 / 9.44 mm/inch
  • Package width: 235 / 9.25 mm/inch
  • Package depth: 105 / 4.13 mm/inch
  • Shipping weight: 1.07 / 2.35 kg/lbs
