D-983

D-983

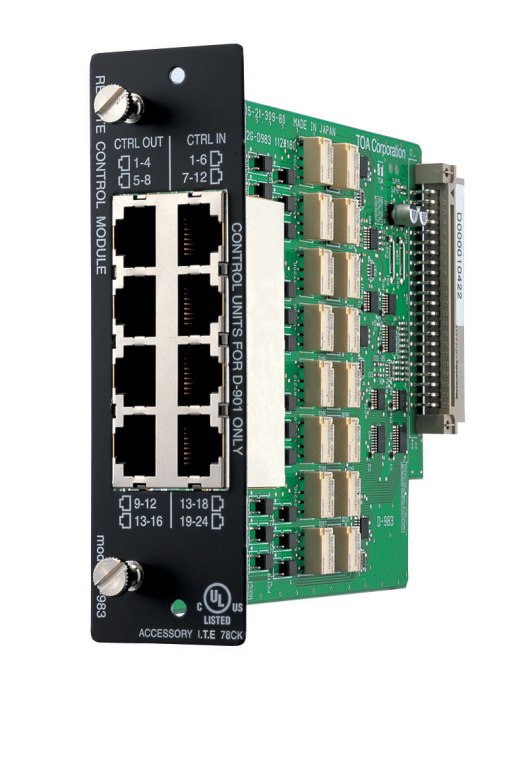

D-983 - Modul diaľkového ovládania pre externé ovládania riadenie hlasitosti, presety,výber stereo vstupov, zapínanie a vypínanie kanálov. Modul má 24 riadiacich vstupov (NO kontakt,5VDC,5mA) a 16 výstupov (bezpotenciálový NO kontakt, max.24VDC, 100mA).

Cena:  Zistiť cenu

DATA Library       \Stránka výrobcu       Katalogový list SK

Specification
Contact Input COM + Terminal 1 - 24: Open voltage: 5 V DC,
short-circuit current: 5 mA, RJ45 connector × 4
Control
Preset Memory Selection Any preset memory can be recalled.
Control method: No-voltage make of over 100 ms/
No-voltage make single pulse of over 100 ms
Volume Control Any input/output channel volume can be turned UP or DOWN.
Control method: 1 step variation for no-voltage make single pulse of over 100 ms
1 step continuous operation for every 70ms for no-voltage
make of over 100ms. Can be reset when at break.
Variable Range: -∞ dB to +10 dB
Channel Any input/output channel can be turned ON and OFF.
Control method: No-voltage make of over 100 ms/
No-voltage make single pulse of over 100 ms
Stereo Selection Input channel lines of the D-936R (optional), or the D-937SP
(optional) (4 stereo input module) can be selected.
Control method: No-voltage make of over 100 ms/
No-voltage make single pulse of over 100 ms
Contact Output COM + Terminals 1 - 16: No-voltage make contact,
contact capacity: 24 V DC, 100 mA,
RJ45 connector × 4
Finish Panel: Pre-coated steel plate, black, 30% gloss
Dimensions 35 (W) × 119.5 (H) × 178.4 (D) mm
Weight 170 g
