D-001R

D-001R

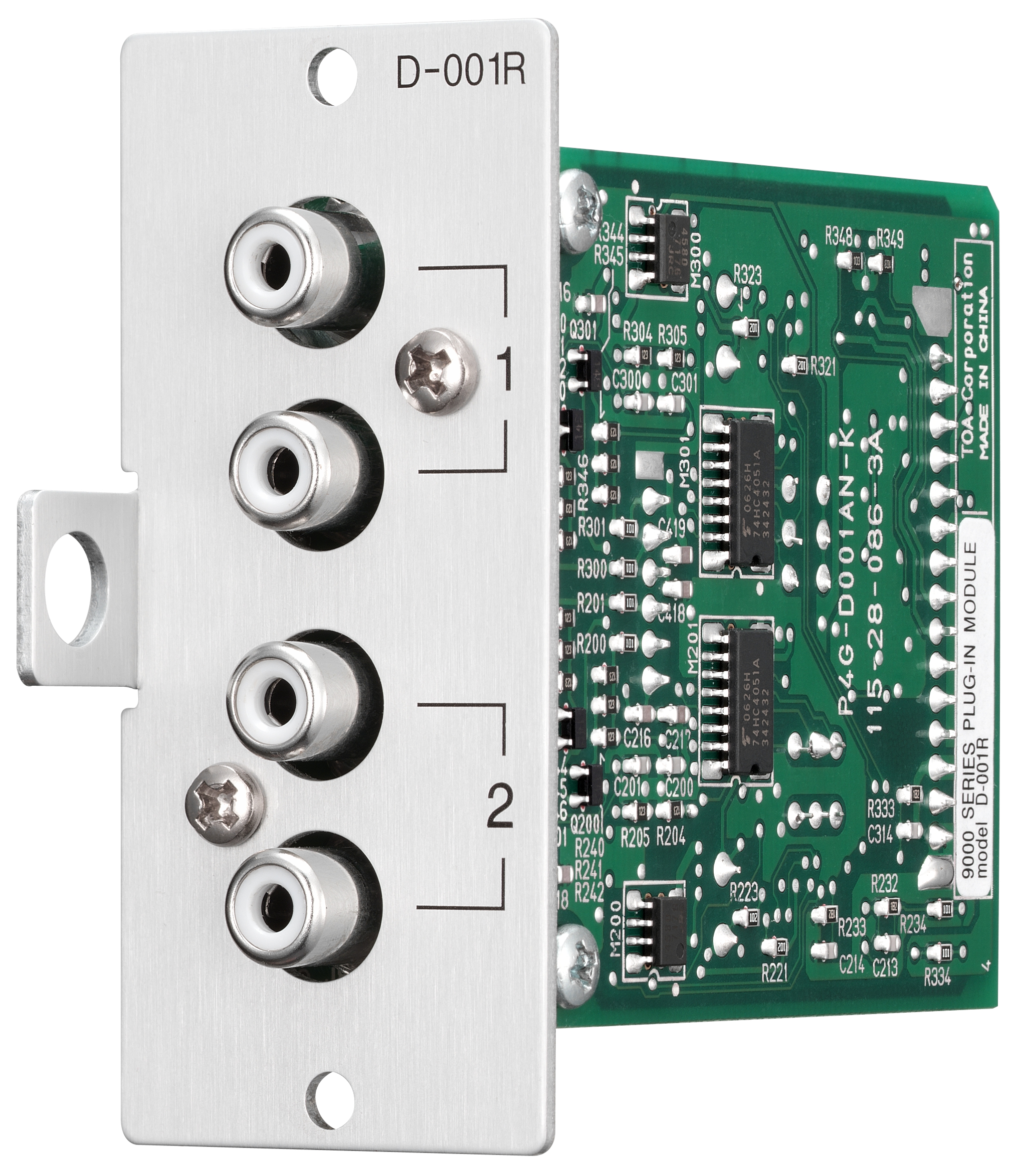

D-001R - 2-kanálový vstupný modul, 2 univerzálne nesymetrické vstupy mikrofón/linka, citlivosť nastaviteľná v rozsahu -60 dB až -10 dB, Oba vstupné kanály sú zmiešané spolu, 24-bitové DSP - nezávisle pre každý vstup

Cena:  Zistiť cenu
DATA Library       \Stránka výrobcu       Katalogový list SK


Specification
* 0 dB = 1 V
Power Source +24 V DC, -24 V DC, +6 V DC
Current Consumption 20 mA (at +24 V DC), 20 mA (at -24 V DC), 60 mA (at +6 V DC)
Input 2 channels, 2RCA/ch mixed, 10 kΩ, unbalanced, RCA pin jack
Input Sensitivity -60, -54, -48, -42, -36, -30, -24, -18, -10 dB* (selectable)
Frequency Response 20 - 20,000 Hz, +1, -3 dB
Total Harmonic Distortion + N 0.008% (at 1 kHz, 20 - 20,000 Hz BPF, Input sensitivity: -10 dB)
S/N Ratio Over 70 dB (at 20 - 20,000 Hz BPF, Input short, Input sensitivity: -10 dB)
Cross Talk Over 75 dB (at 20 kHz, Input sensitivity: -10 dB)
A/D Converter 24 bit ADC
Sampling Frequency 48 kHz
Tone Control Bass: ±12 dB (at 100 Hz)
Treble: %%p12 dB (at 10 kHz)
Parametric Equalizer 10 bands, Frequency: 20 - 20,000 Hz, 31 steps, Variable range: ±12 dB,
Q: 0.3 - 5
High-pass Filter -12 dB/oct, Variable frequency range: 20 - 400 Hz, 14 steps
Low-pass Filter -12 dB/oct, Variable frequency range: 4,000 - 20,000 Hz, 8 steps
Compressor Depth: 1 - 5
Operating Temperature -10℃ to +40℃ (14゜F to 104゜F)
Finish Panel: Aluminum, hair-line
Dimensions 35 (W) × 78 (H) × 91.5 (D) mm (1.38" × 3.07" × 3.6")
Weight 82 g (0.18 lb)
Accessory Module mounting screw …2
